Description
xThe Buffalo Armory Multi-Curve Level III+ 650 Plate: 30% stronger than AR500
Buffalo Armory is led by a retired U.S. Army Major General with a long career of pushing for better equipment for those on the front line. Under his leadership, the company has become the leading steel armor manufacturer in the country, backed by multiple patents for its induction heat-treatment process. Their goal has always been the same: create an advanced, high-performance, low-drag SAPI plate. They are the only manufacturer able to produce a true 650 Brinell hardness steel plate, compared to AR500 armor plates with a 500 Brinell hardness score. With a real curve, this plate combines strength, durability, and wearability in a way no one steel body armor manufacturer has matched. That capability is why Premier Body Armor chose to partner with Buffalo Armory.
The Buffalo Armory STAR Multi-Curve Plate is crafted to set a new standard in ballistic protection and comfort. Made from specialized armor-grade steel with a Brinell Hardness Number (BHN) of 650 ±5, this plate surpasses the durability of traditional abrasion-resistant (AR) steels. Lightweight, ergonomic, and built to perform under high-threat conditions, the STAR Multi-Curve is ideal for law enforcement, military, and security professionals who demand the best.
Key Features of The Buffalo Armory 650 Steel Plate:
- NIJ Certified: The STAR Multi-Curve plate is NIJ 0101.06 Level III certified and tested beyond the Level III baseline against additional special threats commonly associated with Level III+ armor.
- Advanced Ballistic Protection: Designed to effectively stop rifle rounds such as 7.62mm NATO and 5.56mm M855/SS109.
- Armor-Grade Steel Construction: Utilizing steel specifically formulated for ballistic protection, the STAR Multi-Curve delivers outstanding resistance against ballistic threats, surpassing the variable compositions of traditional AR steels.
- Ergonomic Multi-Curve Design: Featuring a true multi-curve profile, these plates conform to the body's natural shape, reducing felt weight and ensuring enhanced comfort and mobility during extended wear.
- Lightweight Construction: Despite its superior hardness, the STAR Multi-Curve maintains a lightweight profile at only 7lbs, reducing fatigue without compromising protection.
- Durable Polyurea Coating: Each plate comes standard with a robust polyurea coating, providing resistance against environmental factors and minor spall mitigation.
- Enhanced Spall Liner Option: For optimal protection, we recommend adding our advanced spall liner, designed to effectively contain projectile fragments upon impact, further safeguarding the wearer.
- 10-Year Warranty: Backed by a decade-long warranty, ensuring long-term reliability and performance.
Specifications:
- Material: Specialized armor-grade steel (BHN 650 ±5)
- Protection Level: Advanced ballistic protection
- Design: Multi-curve for ergonomic fit
- Coating: Standard polyurea with optional spall liner
- Weight: 7lbs; optimized for lightweight performance
- Thickness: Engineered for a slim profile
What Makes AR650 Steel Superior to Standard AR500 Armor Plates
Steel armor offers significant advantages over other types against rifle-rated threats. However, it’s not all the same. The biggest difference between AR500 and AR650 armor is hardness.
- AR500 plates are built from abrasion-resistant steel rated at 500 Brinell Hardness (BHN), which has been the industry minimum for years.
- Buffalo Armory's AR650 plate achieves a true 650 BHN rating through a patented induction heat-treatment process, making it roughly 30% harder than conventional AR500 steel.
At 650 BHN, the STAR Multi-Curve plate is harder than standard AR500 steel, allowing Buffalo Armory to achieve rifle-rated performance in a thinner 5mm profile, compared to the 6.35mm thickness of AR500 plates. The result is a steel armor plate built for multi-hit durability, reduced backface deformation, and greater resistance to penetration from high-velocity rifle rounds (specific threats listed below).
Buffalo Armory is the only manufacturer producing a verified 650 BHN steel plate at scale, backed by a 10-year warranty that most AR500 competitors can't match. When weight, thickness, and stopping power all factor in, the AR650 plate is a different class of protection.
If you’re still comparing materials, our guide to ceramic vs. steel armor plates breaks down the tradeoffs in weight, durability, cost, and threat protection.

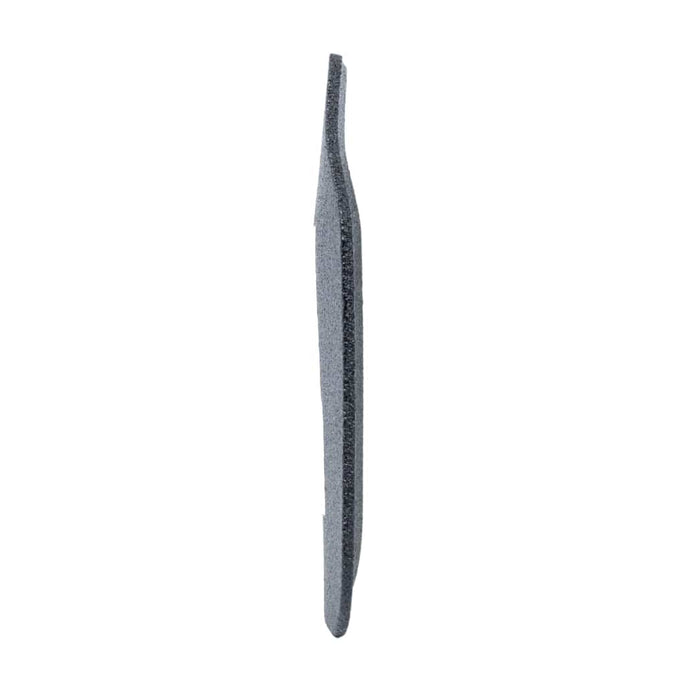

True Multi-Curve Design for Superior Comfort and Concealment
Many steel plates compromise on fit. They're flat, or they use a single-bend curve that still creates pressure points during extended wear. STAR Multi-Curve plates offer a true multi-curve profile that conforms to the natural contours of the torso in two planes. That means weight is distributed more evenly, and there are no pressure points to cause chafing and discomfort.
Multi-curve plates that sit flush against your body carry better, print less, and keep your center of gravity where it belongs. The STAR is one of the few Level III+ multi-curve steel plate options on the market that delivers true 650 BHN protection in an all-day-wearable form factor.
Rating & Testing
Level III+ Protection: Understanding the Enhanced Threat Rating:
7.62mm x 51mm M80 NATO (.308) at 2,780 ft/s
5.56mm x 45mm M855/SS109 (Green Tip) at 3,000 ft/s
5.56mm x 45mm M193 up to 3,000 ft/s
7.62mm x 39mm 123 gr steel core at 2,400 ft/s
All lesser shotgun and handgun rounds
This armor plate is purpose-built for professionals who require high-level protection against specific rifle rounds and other ballistic threats.
What sets this armor plate apart is how it performs against the rounds you are most likely to encounter in real-world environments. Green tip 5.56 and steel-core 7.62x39 are the rounds that defeat lesser plates, and the STAR handles both. Level III+ special threat protection exceeds the NIJ baseline and accounts for the ammunition actually in circulation.
Standard Level III certification requires stopping M80 ball. Level III+ fits between that and Level IV, protecting against steel-core and high-velocity intermediate rounds.
NIJ Level III STANDARD TEST ROUNDS + Additional Special Threat Testing
| Test Category | Round | Velocity (ft/s) |
|---|---|---|
| NIJ 0101.06 Level III certification test | 7.62×51mm M80 FMJ | ~2,780 ft/s |
| Additional special threat / V50 testing | 7.62×39mm MSC (Type 56 Steel Jacketed Core) | ~2,400 ft/s |
| Additional special threat / V50 testing | 5.56×45mm M193 FMJ | ~3,250 ft/s |
In addition to stopping penetration, the armor must limit backface deformation to 44mm to reduce blunt force trauma.
To learn more about the NIJ body armor standards, read our Understanding Body Armor Ratings article.
OFFICIAL TEST REPORT
Want to see the full test report? Download the test document below:
Note: The M80 results shown are from the required NIJ 0101.06 Level III six-shot penetration test, which the plate passed with no complete penetrations. The 5.56 and 7.62×39 results are V50 ballistic limit tests, which involve many more shots and are used to determine the velocity at which the plate begins to fail. These V50 tests go beyond the NIJ minimum and help show overall performance margin rather than certification pass or fail.
Ballistic Test Results for the Buffalo Armory STAR Level III+ PlateEnhanced Protection with Optional Spall Liner
For steel armor users, fragment management matters. The optional advanced spall liner is designed to help capture projectile fragments when used with the plate’s polyurea coating, adding an extra layer of protection in high-risk environments.
Why Choose the STAR Multi-Curve Armor Plate?
Ultimate Comfort and Protection
The multi-curve design not only conforms to your body, reducing fatigue but also enhances your ability to move freely while staying protected.
Advanced Ballistic Material
Made with a unique armor-grade steel formula, the STAR Multi-Curve provides consistent performance beyond that of traditional AR steels.
Built for High-Threat Situations
Tested and rated for multi-threat defense against rifle rounds, this plate is ideal for professionals in military, law enforcement, or private security.
10-Year Warranty for Peace of Mind
Backed by a robust 10-year warranty, you can trust the STAR Multi-Curve to provide reliable protection for years to come.
Comparison: STAR Multi-Curve vs. Standard AR Steel Plates
| Feature | STAR Multi-Curve Armor Plate | Standard AR Steel Plate |
|---|---|---|
| Material | Specialized Armor-Grade Steel | Standard Abrasion-Resistant Steel |
| Brinell Hardness Number | 650 ±5 | 500-550 |
| Design | Multi-Curve for Comfort | Single-Curve or Flat |
| Weight | 7lbs | Heavier |
| Thickness | 5mm (0.19 inches) | 6.35mm (0.25 inches) |
| Warranty | 10-Year Warranty | 5-Year Warranty |
| Best For | Buyers who want thinner, harder steel with a true multi-curve fit | Buyers prioritizing lower-cost basic steel protection |
Complete Loadout: Pair with Our STAR Plate Carrier Package
A plate is only part of the system. The right carrier helps keep the plate properly positioned, stable under movement, and comfortable enough to wear when it matters. The STAR Multi-Curve plate fits perfectly into the STAR Plate Carrier Loadout, a complete armor system built around the plate's ergonomic profile and real-world carry demands.
The carrier is sized and shaped to work with the STAR's multi-curve geometry, keeping the plate seated correctly against your body without shifting under movement. For law enforcement, military, and security professionals who want a ready-to-deploy Buffalo Armory carrier setup without the guesswork of sourcing compatible components separately, the loadout package delivers. Grab the plate, grab the carrier, and you're running a dialed-in system from day one.
The STAR Multi-Curve Is Built for the Job
When the mission calls for rifle-rated protection you can wear all day, the Buffalo Armory STAR Multi-Curve delivers with AR650 steel that outperforms the AR500 standard, a true multi-curve fit, and NIJ-certified ballistic performance.
Shipping
- Quick fulfillment! All in stock orders leave our facility within 1-3 Business Days
- No international shipping at this time
- Body Armor is legal to own in all 50 states (but we cannot ship to the state of Connecticut or New York)
- Easy returns and exchange policy
Law Enforcement / First Responder / Military discount available
Please see TERMS & CONDITIONS for additional details regarding lead time, shipping, warranty & return policy.
